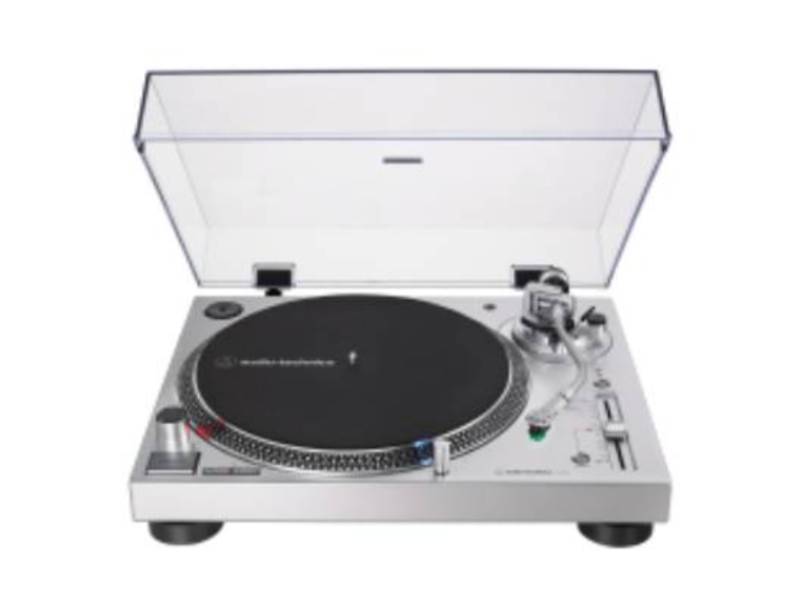

Audio Technica Direct-Drive Turntable Analog & USB - AT-LP120XUSB-SV

Audio Technica Direct-Drive Turntable Analog & USB - AT-LP120XUSB-SV

Audio Technica Direct-Drive Turntable (Analog & USB) in Black - AT-LP120XUSB-BK

Authorized Dealer Price Match Guarantee
Price Match Guarantee
McNain TV and Electronics offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $479.00 CAD
Our Price $479.00 CAD
Our Price $479.00 CAD

More options
Literature

This update of the AT-LP120-USB turntable features a new DC servo direct-drive motor, along with adjustable dynamic anti-skate control and selectable phono preamplifier. The fully manual turntable plays 33-1/3, 45, and 78 RPM records and is equipped with a USB output that allows direct connection to your computer. Just download the free Mac- and PC-compatible Audacity recording software (or software of your choice) and start converting your records to digital audio files. But in addition to the USB output, the turntable also comes with a detachable dual RCA output cable and is equipped with a built-in selectable phono preamp so you can connect directly to your home stereo, whether it has a dedicated phono input or not.

The turntable features an S-shaped tonearm with adjustable tracking force and an AT-HS6 universal ½"-mount headshell with an AT-VM95E Dual Magnet™ phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

Additional features include a die-cast aluminum platter with felt mat; a start/stop button; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-8% or +/-16% adjustment ranges; a stroboscopic platter with speed indicator; a removable plug-type stylus target light; external power supply; and a removable hinged dust cover.

Features

  • Experience the high-fidelity audio of vinyl
  • Direct-drive, DC servo motor
  • Fully manual operation
  • Adjustable dynamic anti-skate control
  • Selectable 33/45/78 RPM speeds
  • Professional-grade anti-resonance, die-cast aluminum platter with felt mat
  • AT-HS6 universal ½"-mount headshell and AT-VM95E Dual Magnet™ phono cartridge with 0.3 x 0.7 mil elliptical stylus
  • AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
  • Balanced S-shaped tonearm with hydraulically damped lift control and lockable rest
  • Built-in switchable phono pre-amplifier for phono- or line-level output
  • Stroboscopic platter with speed indicator
  • Variable pitch control with quartz speed lock
  • Removable plug-type target light for easier cueing in low light
  • Damped base construction for reduced low-frequency feedback coloration
  • AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
  • Convert your vinyl records to digital audio files by downloading and using the free Mac- and PC-compatible Audacity recording software (or software of your choice)
  • Includes: USB cable, detachable RCA output cable (dual RCA male to dual RCA male), AC adapter, 45 RPM adapter, counterweight, felt mat, and removable hinged dust cover
Specifications
Effective arm length230.5 mm
Tonearm typeBalanced S-shaped tonearm with detachable headshell
Accessories Included AT-VM95E phono cartridge; AT-HS6 headshell; 1.9 m (6.2') USB cable; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter; plug-type stylus target light
Dimensions 452.0 mm (17.80") W x 352.0 mm (13.86") D x 141.6 mm (5.57") H
Weight 8 kg (17.6 lbs.), without dust cover
Power Consumption 2.75 W
Power Supply Requirements 100 to 240 V, 50/60 Hz, 1.5A Max.
USB Function A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable; Computer interface – USB 1.1 Compliant Windows 7 or above, or MAC OS X or above
Phono Pre-Amp Gain 36 dB nominal, RIAA equalized
Wow and Flutter <0.2% (WTD) @ 3 kHz (JIS)
Signal-to-Noise Ratio >50 dB
Output Level Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec
Braking System Electronic brake
Starting Torque >1.0 kgf.cm
Turntable Platter Die-cast aluminum
Speeds 33-1/3 RPM, 45 RPM, 78 RPM
Drive Method Direct drive
Type 3-speed, fully manual operation
Motor DC servo motor
Overhang16 mm
Tracking error angleLess than 3 degrees
Applicable cartridge weight3.5-8.5 g
Anti-skating range0-4 g
Replacement StylusAT-VMN95E
USB operation system requirementsPC or Mac with an available USB port (USB1.1 or higher) Windows 7 or above, or Mac OS X or above
