Project Audio Micro-sized FM-Tuner Tuner Box S2 - PJ82380447
Authorized Dealer
Price Match Guarantee
Price Match Guarantee
McNain TV and Electronics offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
| Our Price |
$319.99 CAD |
Literature

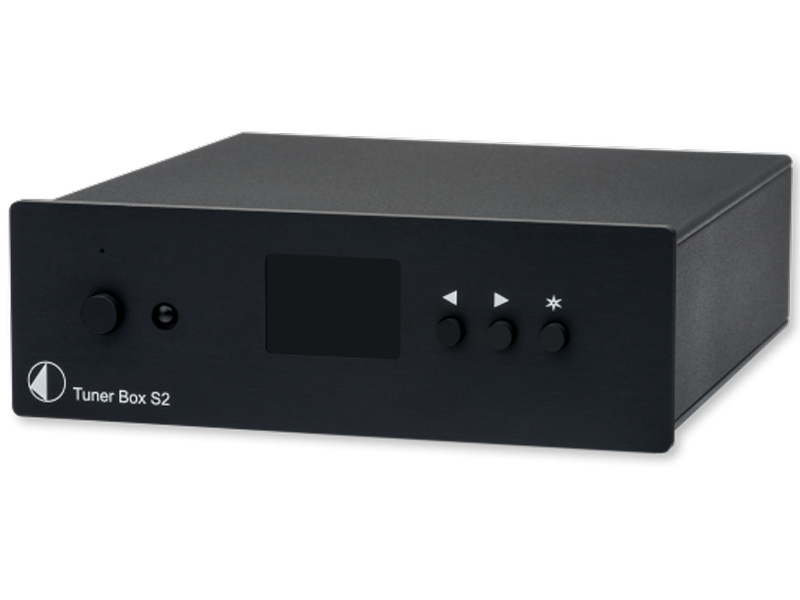

This small FM-only tuner is fully loaded with high-quality audio and useful features. 99 station presets are more than enough to store your favourite radio stations. Tuner Box S2 can ideally be used in combination with other Box design components. For example, the Trigger In and Out allow you to remotelly power on and off the Tuner Box S2 via a Pre Box S2 Analogue. The included full functional IR-remote and the high-contrast dot-matrix display make this unit a delight to use!
Features
- Micro-sized FM-Tuner
- 99 presets
- Manual or automatic tuning
- Adaptive noise reduction
- High-contrast dot-matrix display
- Display of frequency, preset number, centre of station, Stereo or Mono reception, signal strength
- Trigger switching (on/off)
- Full function IR remote control
- Aluminium case in new S2 design
- Available in silver or black
| Specification | |
|---|---|
| Tuning range FM-band | 87,5 - 108MHz (50kHz steps) |
| Programmable presets | 99 |
| Frequency response | 20Hz - 20kHz (±1dB) |
| S/N ratio | 50dB |
| THD | 0,05% / Δf 75kHz and f mod 1kHz |
| Stereo separation | 30dB / Δf 75kHz and f mod 1kHz |
| Sensitivity | 7dB / µV mono, 17dB / µV stereo /75 ohms |
| Antenna input | 1 x co-axial DIN-socket (75 ohms) / US-model F-socket |
| Line-level output | 1 pair RCA/phono sockets |
| Trigger in and out | 2-pole coaxial 2,5mm jack |
| Output voltage | 0,775Vrms |
| Outboard power supply | 5V/1A DC; 110-240V/50, 60Hz |
| Power consumption | 70mA DC, <1W in standby |
| Dimensions W x H x D (D with sockets) | 103 x 37 x 112 (121) mm |
| Weight | 315g without power supply |
